3D Printing for Automotive Prototypes: What to Review

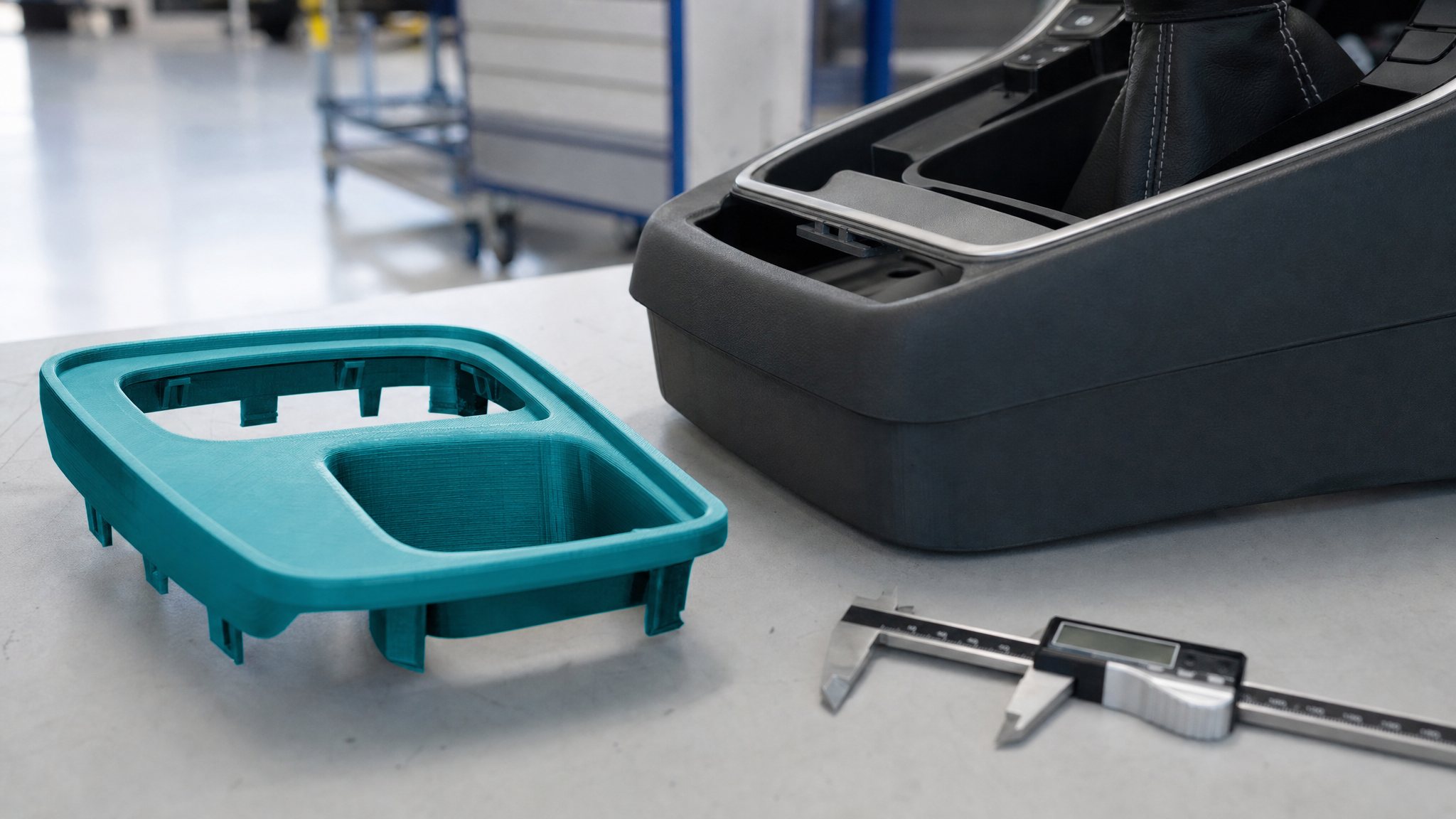

Automotive prototype work gets clearer when a physical print has one job. A digital model can show dimensions, surfaces, and relationships, but it cannot fully show how a component feels in the real setting. A print can help a team check a console shape against surrounding trim, see whether a bracket reaches a mounting location, compare a vent or bezel at full scale, or give a reviewer something tangible to discuss. The useful outcome is not simply a part on a bench. It is a better next decision, supported by an observation the team can share, photograph, and turn into a clear revision or approval.

That is why the first question matters. Before sending a file, write down what the review must settle. Is it clearance around wiring? Reach to a switch? The visual weight of a trim piece? The sequence for fitting two components together? The National Institute of Standards and Technology describes additive manufacturing as building from a digital design layer by layer, and notes that measurement and standards matter as industry use expands. For a prototype request, that starts with treating the physical relationship as a real input, not an afterthought.

Start with the decision, not the print

A physical automotive prototype is most valuable when it answers a narrow, observable question. “Does this bezel sit flush against the existing surface?” is a useful test. “Will this clip clear the harness?” is another. “Can a gloved hand reach the release?” gives the review a specific purpose. Broad requests such as “print this car part” leave too much unresolved, especially when a part must work around existing geometry, tools, fasteners, and interior surfaces.

Keep the first review separate from later validation. A shape model may be exactly what a design team needs to assess scale and visual balance. A fit model may reveal whether a tab, opening, or mounting face lands in the right place. Neither result automatically establishes repeated-load performance, temperature resistance, crashworthiness, or regulatory suitability. Clear boundaries make feedback more useful because everyone knows what the prototype was built to reveal.

Bring the surrounding context into the request

The file describes the proposed component. The photos and measurements describe the world it has to fit. Include the intended finished dimensions, key hole spacing, fixed edges, nearby obstructions, cable routes, fasteners, and access points. A close photo with a ruler can be more useful than a long description when a part needs to sit beside an existing console, housing, or panel.

Mark the dimensions that cannot move. If an opening must align with a connector, show the connector and identify the clearance. If a mounting point uses existing hardware, provide the spacing and the hardware context. If a part needs to nest beside a curved surface, include views that make the adjacent shape clear. The review becomes much stronger when the person assessing the print can see the relationship the file is meant to achieve.

3D print preparation with a model preview and teal test print

Check form, fit, access, and assembly in that order

Start with form. Place the prototype where it will be seen and look at its scale from the normal viewing distance. A part can look compact in a rendering yet feel oversized once it sits in a cabin or beside a dashboard component. This first check is especially useful for housings, interior trim, display mockups, and presentation pieces that need a confident physical presence without blocking the space around them.

Next, check fit. Bring the part to the real mounting area or the most accurate available reference. Look for interfering edges, missing clearance, awkward gaps, and surfaces that do not meet as expected. Then check access. Can a hand reach the feature that matters? Is there room for a driver, clip tool, cable, or connector? Finally, check assembly. Follow the intended sequence, even if the prototype is only a low-risk shape or fit model. A part can be correctly sized and still create a problem if it only works after another component is already in the way.

Use a repeatable review method

Run the same review conditions for every revision. Place each version in the same location. Use the same hardware or nearby component. Take photos from the same angles. Record the observation in plain language. “The opening clears the connector, but the upper flange blocks the tool” gives a file owner something they can act on. “It seems off” does not yet identify the revision needed.

For a comparison, change only what you intend to compare. If two versions test different heights, keep the mounting surface and surrounding part the same. If you are reviewing two control locations, use the same hand position and viewing angle in the same setting. This makes the next choice easier to defend. It also prevents a review team from mistaking a changed condition for an improved part, or from giving a promising version credit for a change in the review setup rather than the part itself.

Plan for the information a printer needs

A clear prototype request includes more than a file name. State which file version is current, the intended finished size, the quantity, and the purpose of the review. Add any time constraint that affects the decision, but do not use a deadline to hide an uncertain goal. A quick print is most useful when the team already knows what it will inspect as soon as the part arrives.

It also helps to distinguish the dimensions that are fixed from the dimensions still open to change. A fixed mounting-hole pattern, a connector opening, or a known packaging boundary gives the review an anchor. A flexible outer contour, cosmetic surface, or proposed hand position can then be tested honestly as an option rather than mistaken for a settled requirement. That small amount of preparation creates a more productive conversation before the file is printed and after the physical review is complete. It also reduces the chance that a printer receives a model without the context needed to understand the physical question behind it.

Detailed teal 3D printed functional part on a printer bed

Use quantity to compare intentional revisions

One prototype is often enough for a straightforward scale or interference check. Two or three become worthwhile when each represents a deliberate option, such as a different mounting position, opening size, surface contour, or overall height. More copies do not create better evidence unless each one changes a question the team needs to answer.

For a customer-provided file, the best quantity is usually the smallest number that produces a useful review. If the first part reveals a clearance issue, a larger batch of that same version simply spends budget before the file is ready. The prototype cost guide explains why size, geometry, quantity, and timing affect a quote. Those details are also the practical way to decide whether the next step is one fit check or a side-by-side comparison.

Keep the prototype close to the real interface

Automotive parts rarely exist alone. A trim surround may meet a display, a switch, a cable, a cup holder, or a curved dashboard surface. A bracket may need to clear a connector and still leave room for the tool that reaches its fastener. A physical review should include those neighboring pieces whenever possible, because the edge, gap, or movement that causes trouble is often outside the proposed part itself.

Do not substitute a convenient setting for the actual one without recording the difference. If the vehicle or assembly is not available, use the most accurate reference you have and note what remains unconfirmed. A simple reference surface can still settle overall scale or a major dimension. It cannot stand in for a dashboard contour, a loom route, or the reach a technician needs during installation. That distinction helps the team decide what the first print can prove and what needs another check later.

Give reviewers a short observation list

A prototype review is easier when everyone looks for the same things. Before the part arrives, make a short list: Does the part sit in the intended envelope? Which edges must clear? Which holes, tabs, or surfaces control the fit? Can the relevant hand, tool, or connector reach its destination? Is the part being judged for visual placement, assembly sequence, or a specific function? A focused list keeps a meeting from ending with only general impressions.

Capture the answer with a few photos and a plain-language note. Record any dimension that changed between versions and the condition that exposed the issue. When a reviewer says a feature is too close, identify what it is too close to and where the measurement was taken. This makes the feedback useful to the file owner and prevents the next prototype from repeating a problem that was already observed.

Separate prototype evidence from safety and durability claims

Automotive work can involve heat, vibration, liquids, repeated loads, and safety-critical systems. A printed prototype can be excellent for reviewing a physical relationship, but it should not be treated as automatic proof for those conditions. NIST’s work on additive manufacturing part qualification illustrates how formal testing, measurement, and acceptance criteria matter for critical applications.

Keep that distinction direct in the review notes. A prototype can show whether the part clears a neighboring component, reaches an intended location, or communicates a design direction. It does not independently qualify brakes, steering, restraints, airbags, or another failure-critical vehicle system. If the component will face demanding mechanical, thermal, chemical, or safety requirements, identify the engineering and validation work that must happen outside the prototype print.

Teal geometric 3D print being made on a printer bed

Prepare the handoff for the next revision

End every physical review with a clear choice: keep the file, revise the file, or gather more information. Label the file version, document what changed, and record the observation that led to the decision. A note such as “Version B moves the opening left to clear the cable” gives the next reviewer a useful starting point. It is much better than sending a new file without explaining what the previous part revealed.

This approach also protects the people reviewing the prototype. A physical part is persuasive, so it is easy for a team to assume it is more proven than it is. A short record of the intended test, the setting, the result, and the next action keeps the conversation tied to what was actually observed. That is how a quick printed model becomes a disciplined prototype process rather than a costly detour.

How Wildre3D can help with automotive prototype reviews

Wildre3D Printing can help when you have a permitted printable file and a defined question to check in the real world. Send the current file, intended dimensions, quantity, photos or measurements of the surrounding context, and a sentence about the review goal. For a broader file-to-review workflow, the rapid prototyping guide shows how to structure a practical first pass. If the question is primarily visual scale or placement, the 3D printing mockups guide is a useful companion.

Wildre3D works from customer-provided files rather than creating a new vehicle component from a sketch or photo. Once you have a file you are authorized to have manufactured, the prototype printing service and custom printing process explain the practical next steps. For a replacement-part context, review the replacement-parts guide. When you are ready, request a custom quote with the file and the specific physical question the prototype needs to answer.

Frequently asked questions

What should an automotive prototype prove?+

Start with one practical question, such as whether a part clears a neighboring component, aligns with a mounting point, allows access to a control, or has the right visual scale. A prototype can create useful evidence for that question, but it does not automatically prove safety, durability, or production readiness.

What file is needed for an automotive prototype print?+

Wildre3D Printing works from a permitted customer-provided printable file, commonly an STL. Include the exact version to print, intended dimensions, quantity, the review goal, and photos or measurements that show the surrounding context.

Can a 3D printed automotive prototype be installed and driven?+

A prototype should not be treated as a safety-critical or road-ready part without the appropriate engineering, material selection, testing, and approvals. Brakes, steering, restraint systems, and other failure-critical vehicle components need validation beyond a prototype print.

How many automotive prototypes should I order?+

Order the number that will answer the next decision. One can be enough for a fit or appearance check. Two or three can help compare intentional revisions. A larger run makes sense only after the file and the purpose of the part are settled.
