Rapid Prototyping With 3D Printing: A Practical Guide

Rapid prototyping with 3D printing is most useful when a team needs to move a decision out of the screen and into the real world. A physical version can answer questions a rendering cannot: does the enclosure feel too large, does the bracket line up with the hole pattern, does a cable clear the edge, can someone actually reach the latch, or does the mockup communicate the size you intended?

The point is not to make one perfect part on the first try. The point is to make a version that tests the right question, then use what you learn to decide what needs to change. For a business with a permitted printable file, that can be a faster and clearer starting point than debating a model in the abstract.

Start with the decision the prototype needs to support

Before ordering a prototype, write down the decision it should make easier. “See if it looks right” is a start, but a sharper question produces a more useful print. You may need to check whether a replacement part sits in the correct opening, whether a new holder clears a nearby switch, whether the overall footprint fits a counter, or whether an internal feature is accessible once the shell is assembled.

One prototype does not need to test everything. A rough volume model may be enough to check scale. A more detailed version may be needed later for clearance, fastener locations, or hand feel. Separating those jobs prevents a common mistake: asking the first print to behave like a finished production part when it only needs to settle one practical question.

State the test in plain language before you send the file. For example: “This needs to sit around a 1-inch rail,” “the opening needs to clear this connector,” or “we need to compare three sizes on a shelf.” Those details give the digital file a physical purpose and help identify which measurements deserve the closest attention.

Choose the right kind of prototype

Most rapid prototyping requests fall into a few useful groups. A form model checks size, shape, and visual presence. A fit model checks openings, mounting points, clearances, and nearby surfaces. A handling model checks grip, reach, arrangement, or how an object sits in a workspace. A communication mockup helps a team or customer understand the scale and intent of an idea before a bigger commitment.

The same file can be used differently at each stage, but the request should name the immediate job. A prototype that is only being used for a layout review may not need the same finish or detail as one that must be held beside another component. A replacement part may need close attention at a clip, hole, or channel, while a product mockup may need the outer dimensions and silhouette to read correctly first.

This is why a clear use note is as important as the model itself. It gives a print provider context for the conversation without implying that the first version is automatically approved for every use. A prototype earns its keep by exposing the next decision, not by pretending uncertainty does not exist.

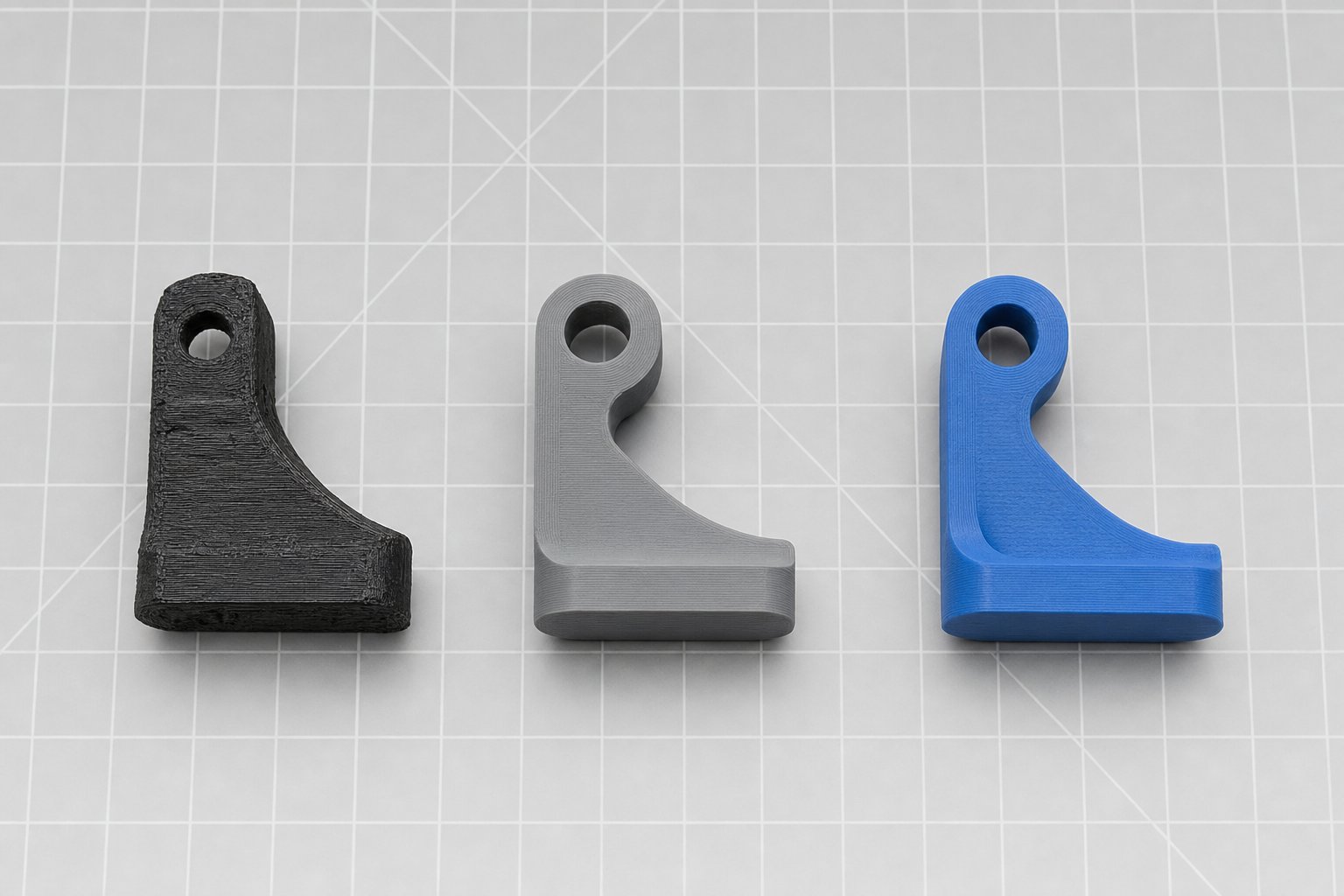

Three iterations of a small 3D printed functional bracket arranged from rough to refined

Bring the file and the physical context together

A printable file is the essential starting point for Wildre3D. The more useful request also explains what the file relates to in the real world. Include the intended overall size, the object or space it must work with, and the surfaces, openings, or features that cannot change. A few photos beside a ruler are often more valuable than a long message, especially when the part has to align with an existing object.

For a fit check, capture the area from far enough away to show the whole situation and close enough to show the critical point. If there is an opening, hole pattern, rail, cable, clip, or edge involved, make that visible. For a mockup, give the shelf, desk, counter, or product it will sit beside. For a replacement piece, identify what it connects to and what should remain clear.

File choice matters too. An STL is a common format for a printable model. When the project uses a richer model format, the 3MF Consortium explains that 3MF can carry information such as units, materials, and colors. The useful takeaway is simple: send the exact version you want reviewed and make the intended scale clear, rather than assuming a model will speak for itself.

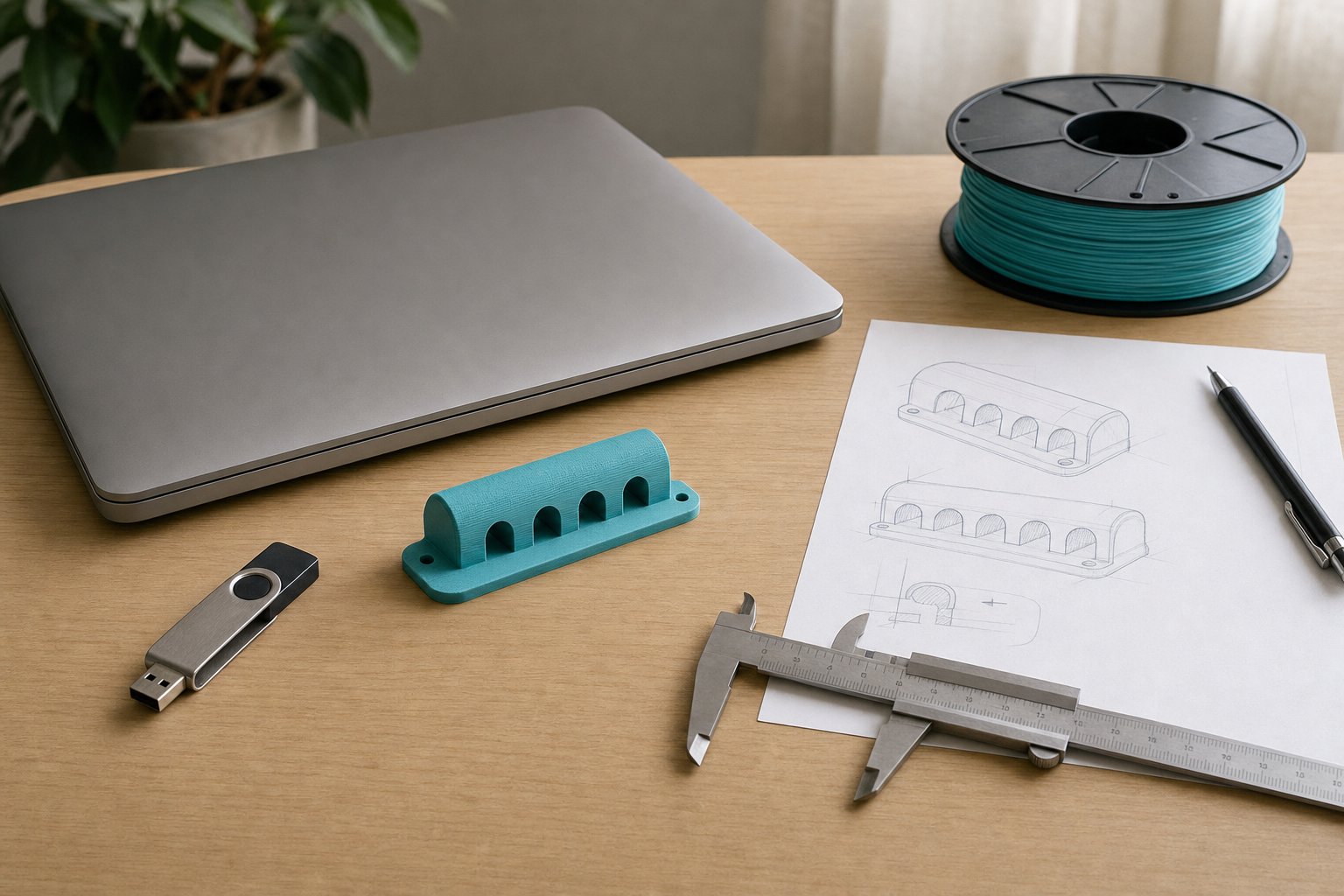

3D printed cable guide prototype with calipers, a closed laptop, and a hand sketch on a worktable

Measure what cannot move

Every practical prototype has a few details that are not flexible. They might be the spacing between holes, the inside width of a channel, the diameter of a cable pass-through, the depth of a drawer, or the height of a nearby obstruction. Identify those details before the print begins. You do not need to create a complete engineering drawing, but you do need to distinguish a preference from a requirement.

It helps to make a short list with three headings: must fit, should fit, and nice to have. “Must fit” covers the dimensions or features that make the part useful at all. “Should fit” covers details that improve the experience but may tolerate a change. “Nice to have” covers appearance or convenience choices that should not distract from the central test. This keeps the first prototype focused and makes the review easier afterward.

For customer-provided files, Wildre3D’s replacement-parts guidance and small functional parts page show the same practical principle: measurements, photos, and an explanation of the part’s job help a request move from a model on a screen to an object with a real chance of fitting its role.

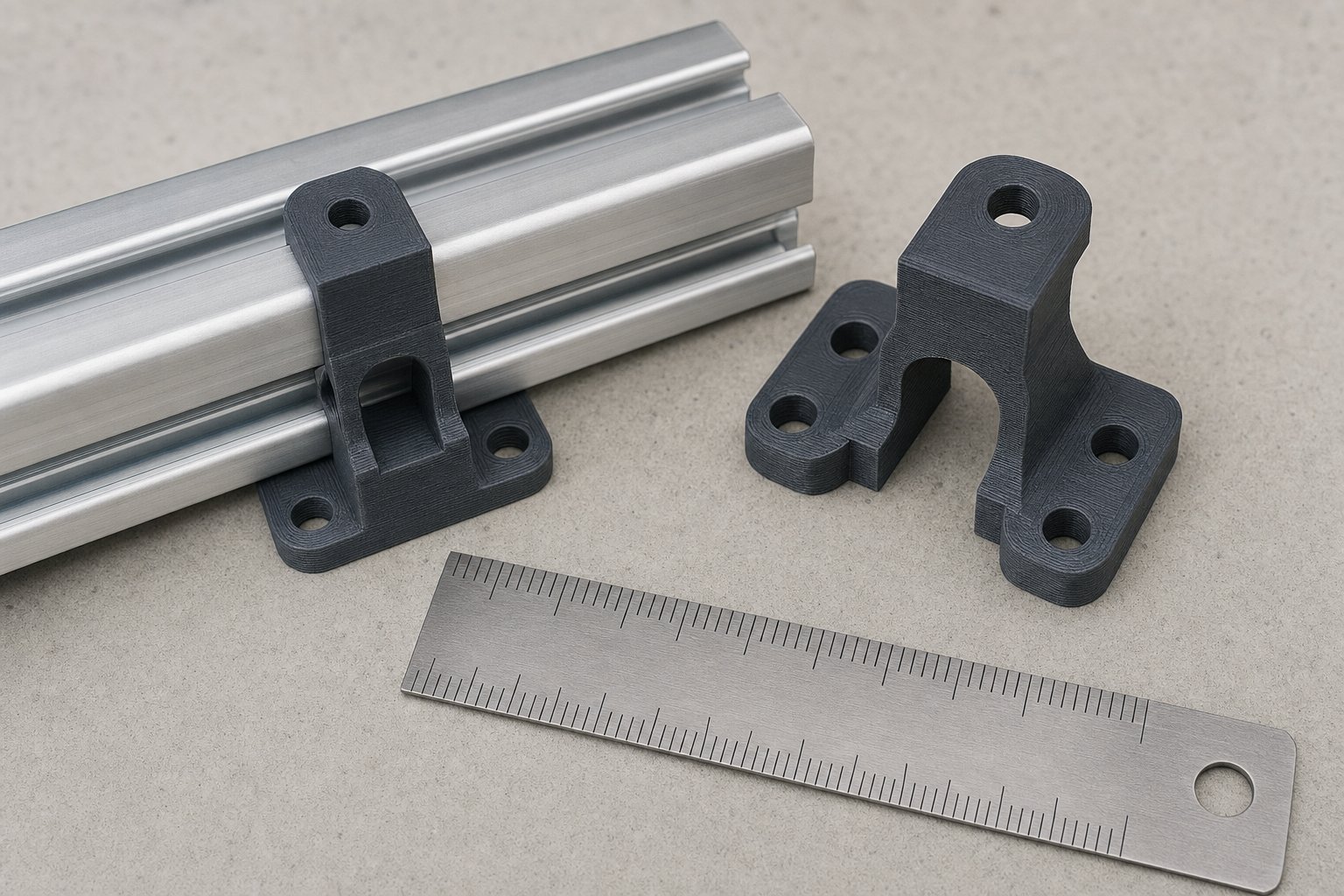

Two dark gray 3D printed bracket prototypes beside an aluminum rail and a metal ruler

Make the review repeatable

A prototype creates more value when the review is consistent. If several people will handle it, agree on the few questions each person should answer before the part arrives. A buyer may be judging whether the size feels appropriate. An installer may be checking access to a fastener. A technician may be looking for cable clearance. A manager may only need to know whether the shape communicates the intended product direction. Those are different tests, and recording them separately keeps one loud opinion from replacing the actual purpose of the print.

Use the same setup for each comparison when possible. Place alternate sizes on the same shelf, mount each version against the same rail, or photograph every revision beside the same ruler. That makes a small change visible and prevents memory from becoming the measurement. Even a simple note with the version name, date, test location, and result can help a team avoid revisiting a question that the previous prototype already answered.

It is also useful to separate feedback about the model from feedback about the use case. “This corner needs to move 4 millimeters” is a model change. “The part is hard to reach when the cable is connected” describes the use case that the next file needs to solve. Both matter, but the second gives the designer or file owner the context needed to make a useful revision. That distinction keeps prototype reviews grounded in what the real object must do.

Plan the first version around what you need to learn

A first prototype is often more effective when it is deliberately simple. If you are checking a footprint, you may not need every internal feature. If you are testing a clip, the surrounding body can be reduced to the area that affects the clip. If you are comparing sizes, a few scaled versions may tell you more than a single highly finished object.

That does not mean skipping important constraints. It means placing effort where it changes the next decision. A fit check benefits from accurate contact points. A handling check benefits from the right grip and reach. A presentation mockup benefits from the right outer shape and size. Keeping the first version tied to its job helps prevent the project from getting stuck trying to perfect details that have not yet been proven necessary.

In additive manufacturing, the orientation and geometry of a part can influence how it is produced. The National Institute of Standards and Technology describes additive manufacturing as building objects layer by layer, which is why overhangs, narrow features, and the way a model is positioned are worth discussing when they affect the question you are testing. A short note about the intended use is the practical starting point for that discussion.

Review the prototype against the original question

When the prototype arrives, do not judge it only by whether it looks good on a table. Put it where it will be used. Hold it in the intended position. Place it beside the existing object. Check the clearance with the cable, the rail, the drawer, the mounting point, or the nearby control. If the prototype is a communication mockup, show it to the people who need to understand the decision and listen for the questions it raises.

Then record what changed. A short review can be enough: too wide by a small amount, opening needs to move, edges need more room, size feels right but the button is hard to reach, or the outer form is correct but the mounting points need revision. Photos of the prototype in position are useful because they preserve the physical context that a revised file will need.

This makes the next version purposeful. Instead of “try again,” you have a defined update: adjust the diameter, change the offset, reduce the footprint, move the opening, or test a second size. That is the actual value of rapid prototyping. Each print reduces ambiguity and makes the next decision less speculative.

Know when a prototype is ready to move forward

A prototype is ready for the next stage when it has answered the question it was meant to test. That could mean the part fits the intended space, the mockup communicates the right scale, the user can reach the control, or the replacement feature lines up with the existing object. It does not require every possible future question to be resolved in one pass.

Be honest about the difference between a prototype and a final production part. A prototype can confirm that a design direction makes sense, but real use conditions, material needs, loads, heat, safety requirements, and long-term durability may require separate engineering or material decisions. Calling out those limits early is not a setback. It is what keeps a prototype useful rather than misleading.

How Wildre3D can help with a customer-file prototype

Wildre3D Printing is a good fit when you already have a permitted printable file and need a physical version to review, compare, measure, or test in context. Send the STL file or direct model link, the approximate final size, what the prototype needs to prove, and the dimensions or surfaces that matter most. For a part that must fit another object, include photos and measurements that show the relationship clearly.

Wildre3D focuses on producing customer-provided files rather than designing a new model from a sketch, photo, or broken object. Once you have a file you are authorized to have manufactured, the 3D printing quote page gives you a focused checklist, and the custom printing process explains what happens before a quote is confirmed. When you are ready, request a custom quote with the file and the real-world job it needs to do.

Frequently asked questions

What is rapid prototyping with 3D printing?+

It is a practical way to turn a model into a physical version that can be held, measured, placed next to the real object, and reviewed before a larger production decision. The goal is to learn from the part, not to pretend the first version is already the final one.

What should I send for a 3D printed prototype quote?+

Start with a permitted STL file or direct model link, the intended size, what the prototype must test, and any dimensions that cannot change. Photos, a simple sketch, or a description of the mating part can make the request much clearer.

Can Wildre3D design my prototype from a sketch?+

Wildre3D Printing focuses on producing customer-provided files rather than creating an original model from a sketch, photo, or concept. Once you have a permitted printable file, Wildre3D can review it alongside the physical context for the prototype.

How many prototype versions should I print?+

There is no fixed number. Print another version when the first one answers one question but exposes another, such as whether the fit is right, a grip is comfortable, a cable clears an edge, or the part needs a different size. Stop when the important decisions have been tested well enough to move forward.
